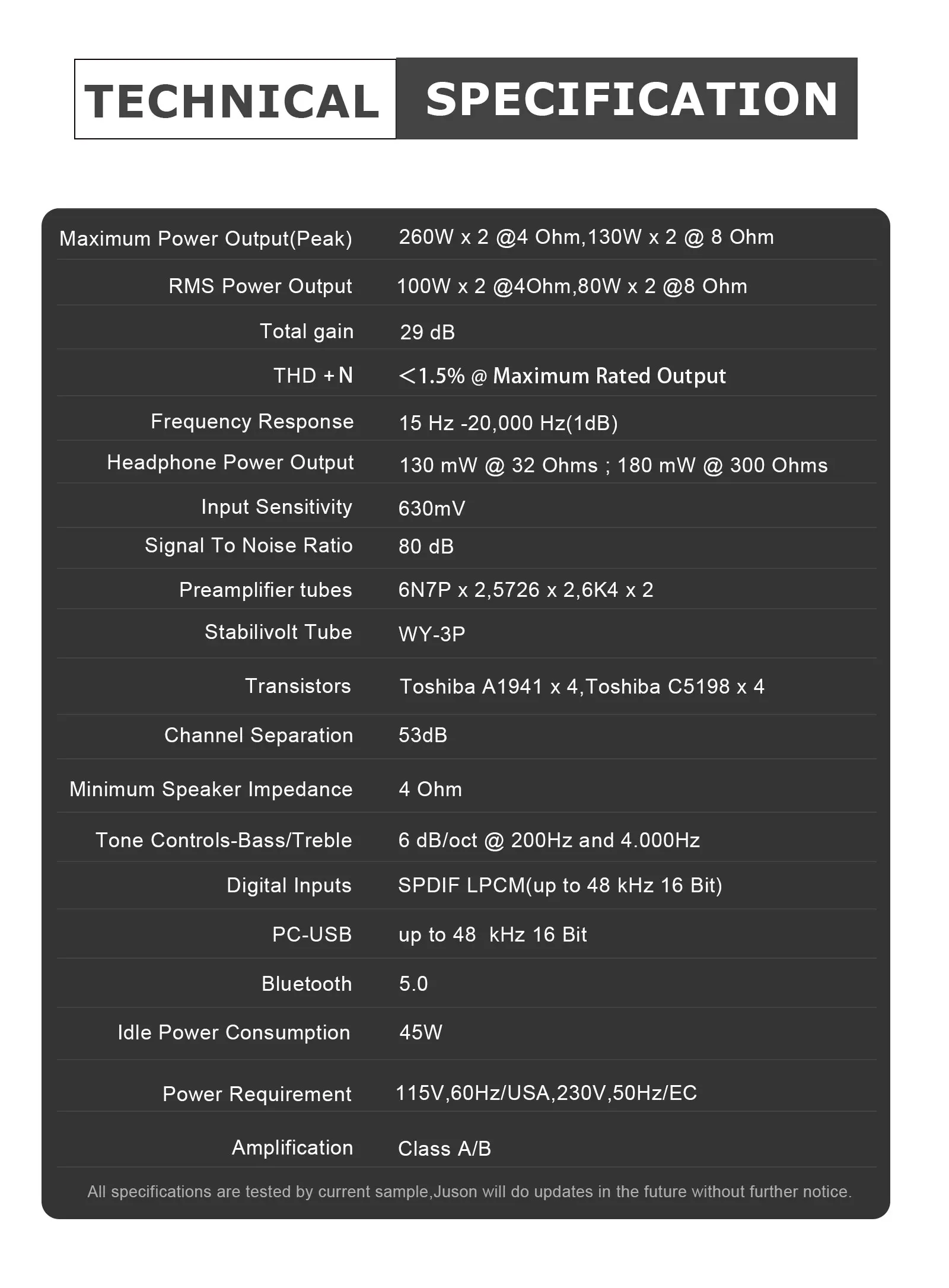

SPECIFICATIONS

Amplification: Class A/B

Bluetooth: Version 5.0, supports SBC and AAC codecs

Certification: CE, FCC, RoHS

Channel Separation: 53 dB

Channels: 3 (2.1)

Digital Inputs: SPDIF LPCM (up to 48 kHz / 16 Bit)

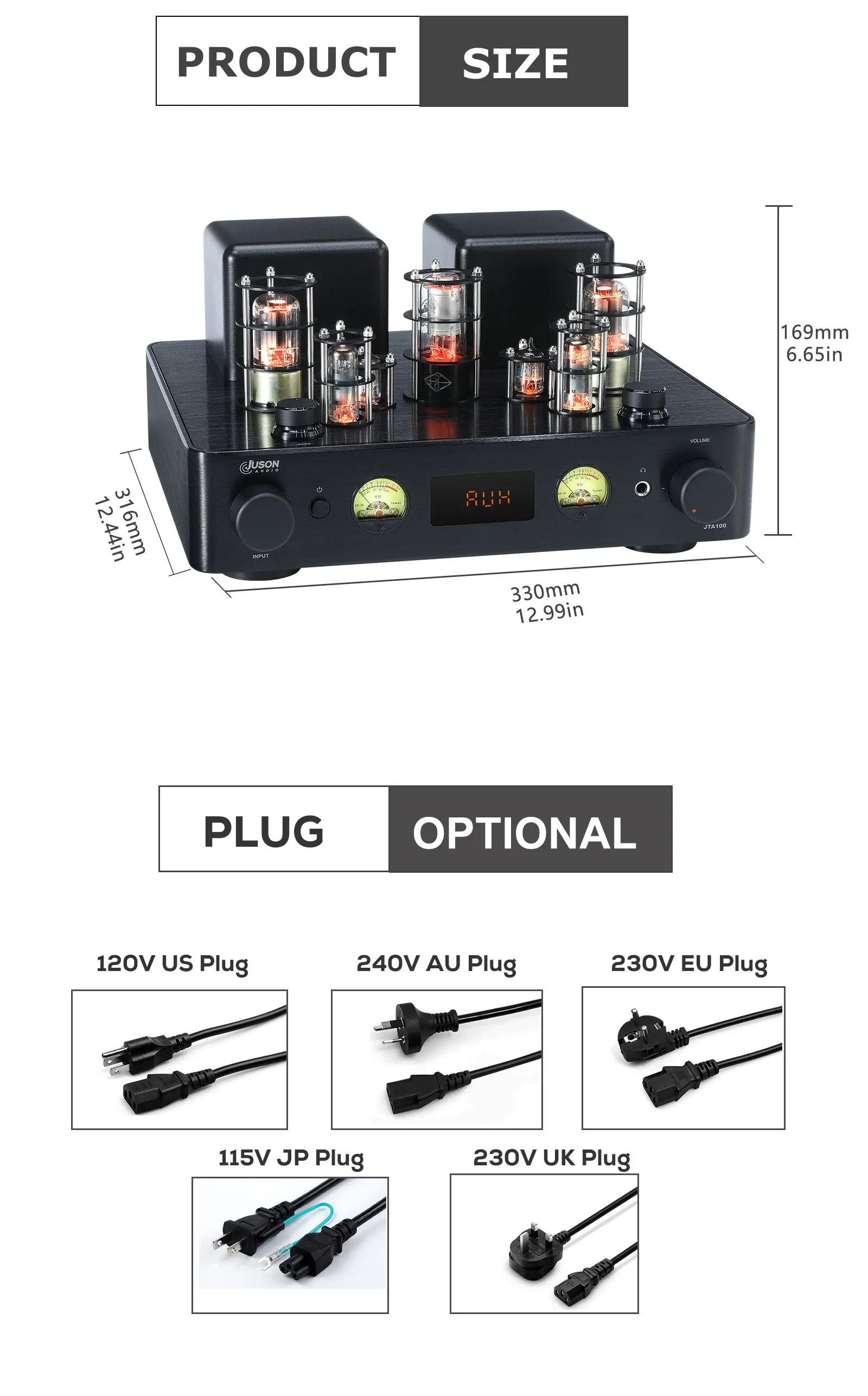

Dimensions: 330 × 316 × 169 mm

Frequency Response: 15 – 20,000 Hz (±1 dB)

Headphone Output: 130 mV × 2 @ 32 Ω; 180 mV × 2 @ 300 Ω

High-concerned Chemical: None

Idle Power Consumption: 45 W

Input Sensitivity: 630 mV

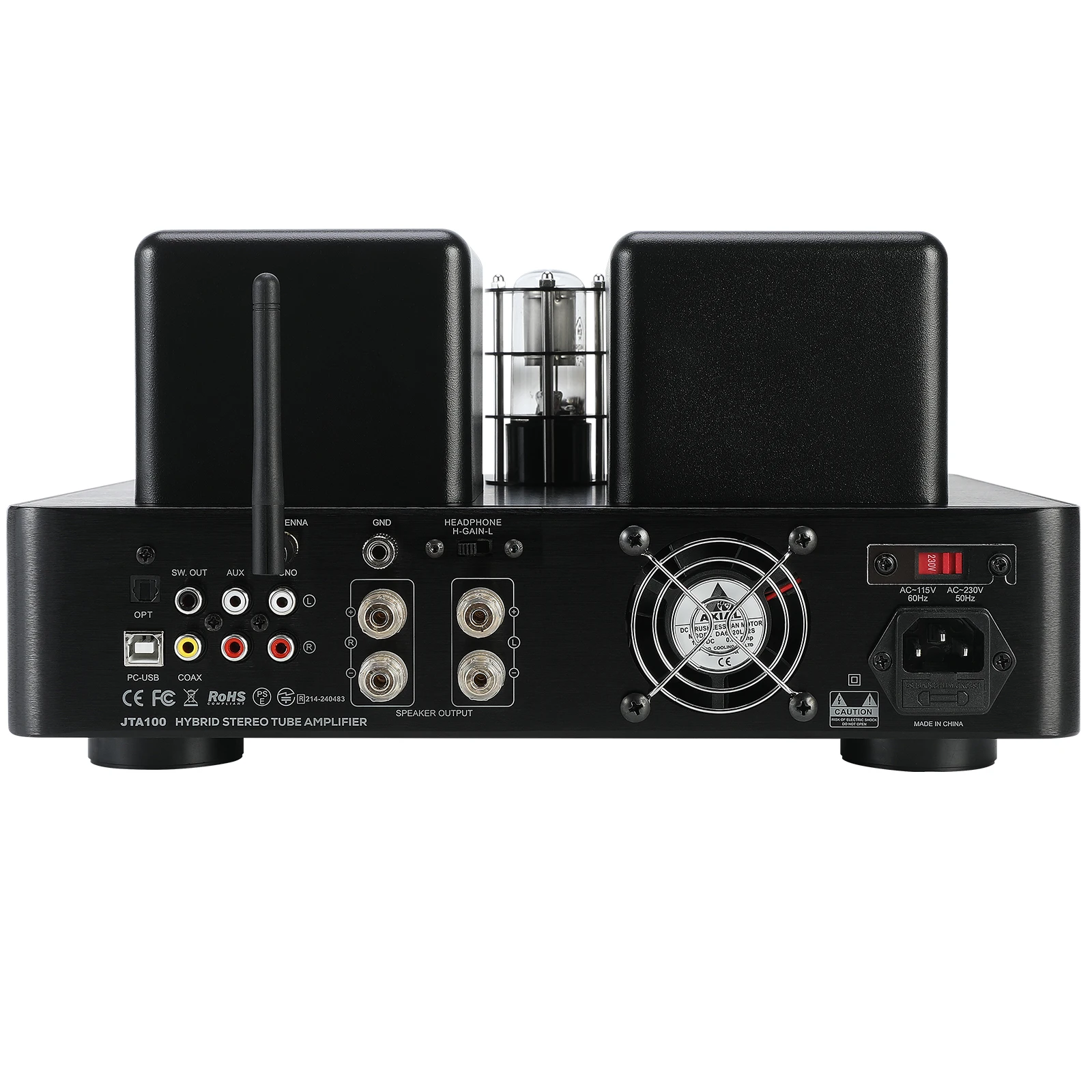

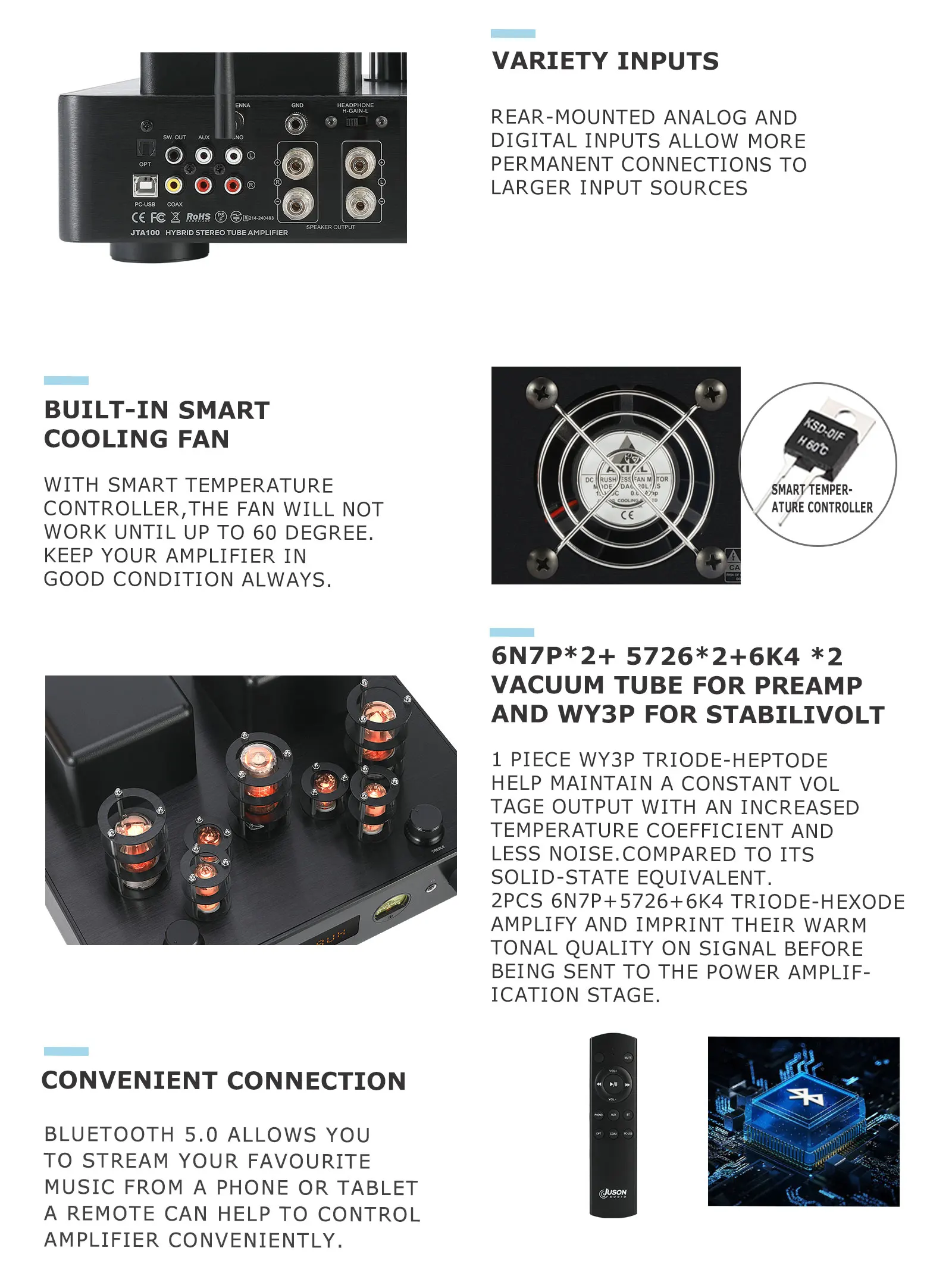

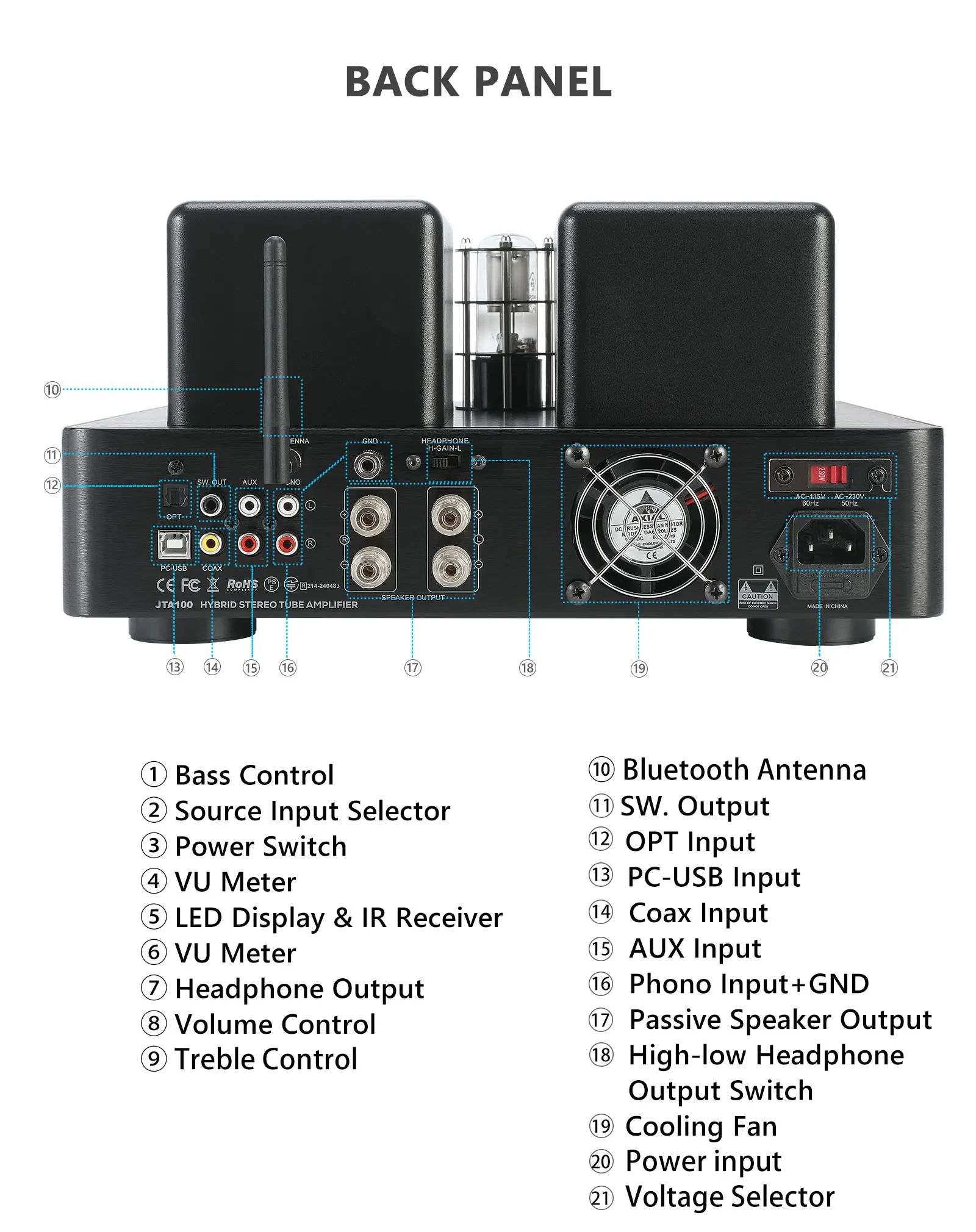

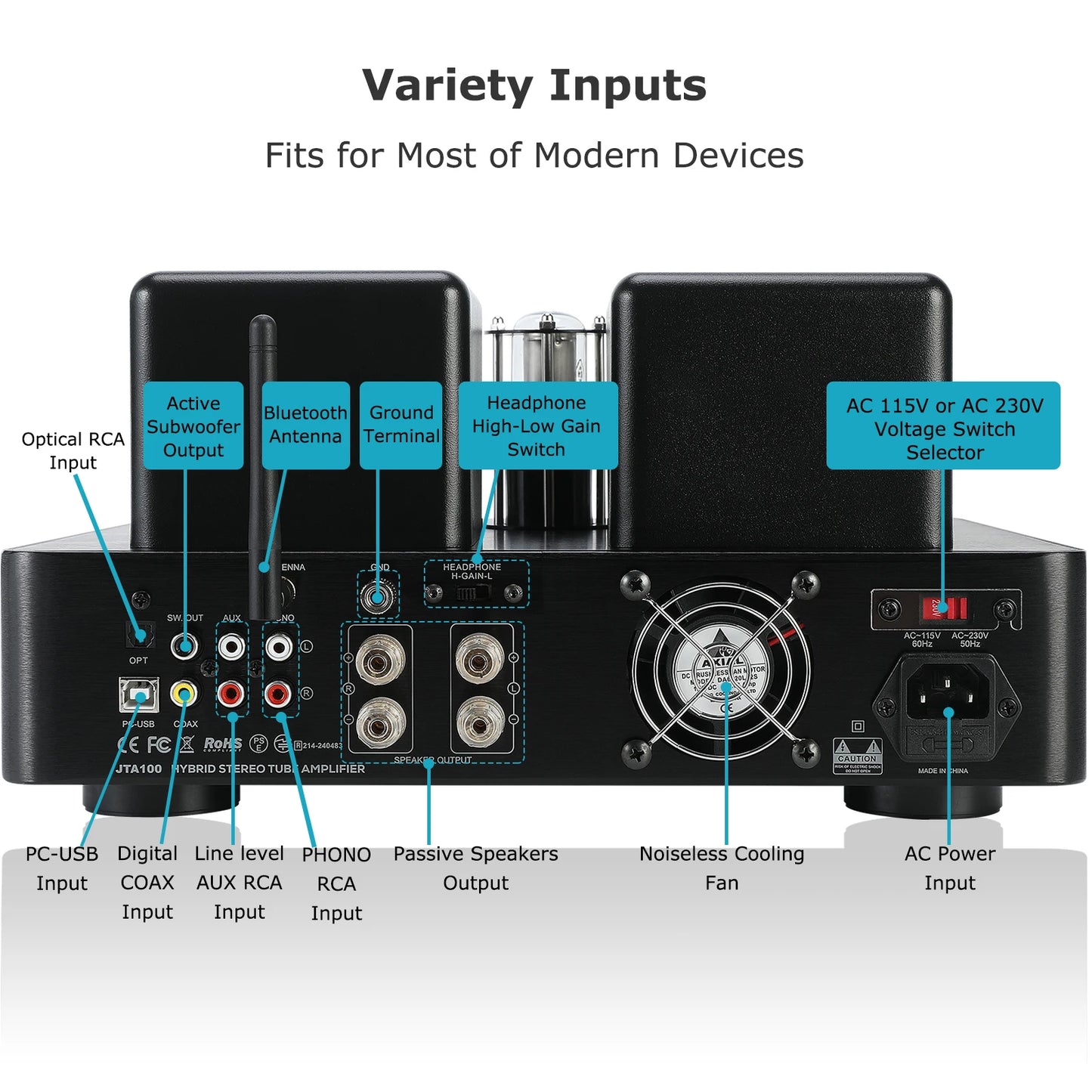

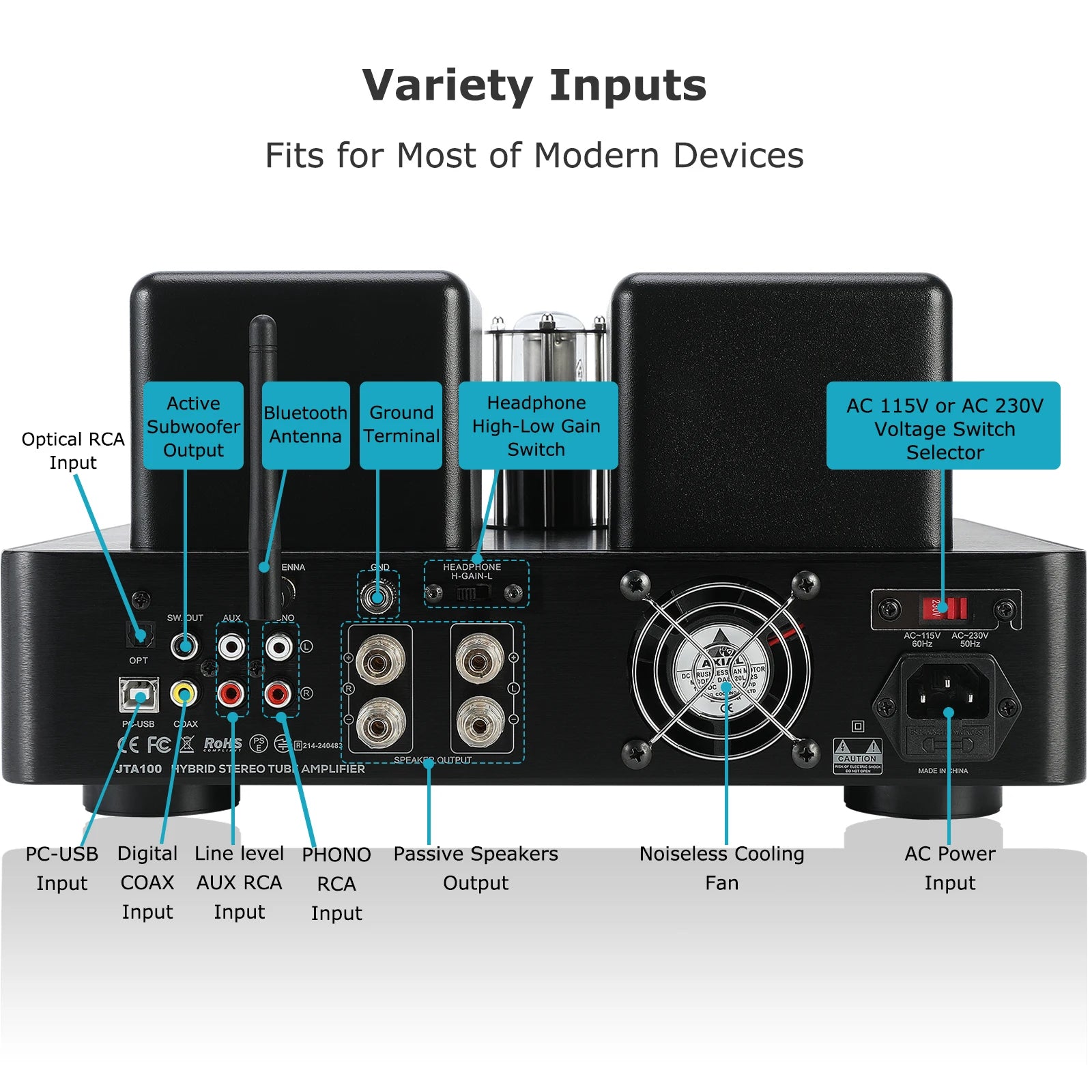

Inputs: Optical, Coaxial, Bluetooth 5.0, 2× Stereo RCA, USB

Maximum Power Output (Peak): 260 W × 2 @ 4 Ω, 130 W × 2 @ 8 Ω

Maximum Power Per Channel: 100 W

Minimum Speaker Impedance: 4 Ω

Model: JTA100-N (Updated Version)

Outputs: Speaker, Subwoofer, Headphone

PC-USB: Up to 48 kHz / 16 Bit

Package: Yes

Power: 115/230 VAC, 50/60 Hz (Standard IEC Connection)

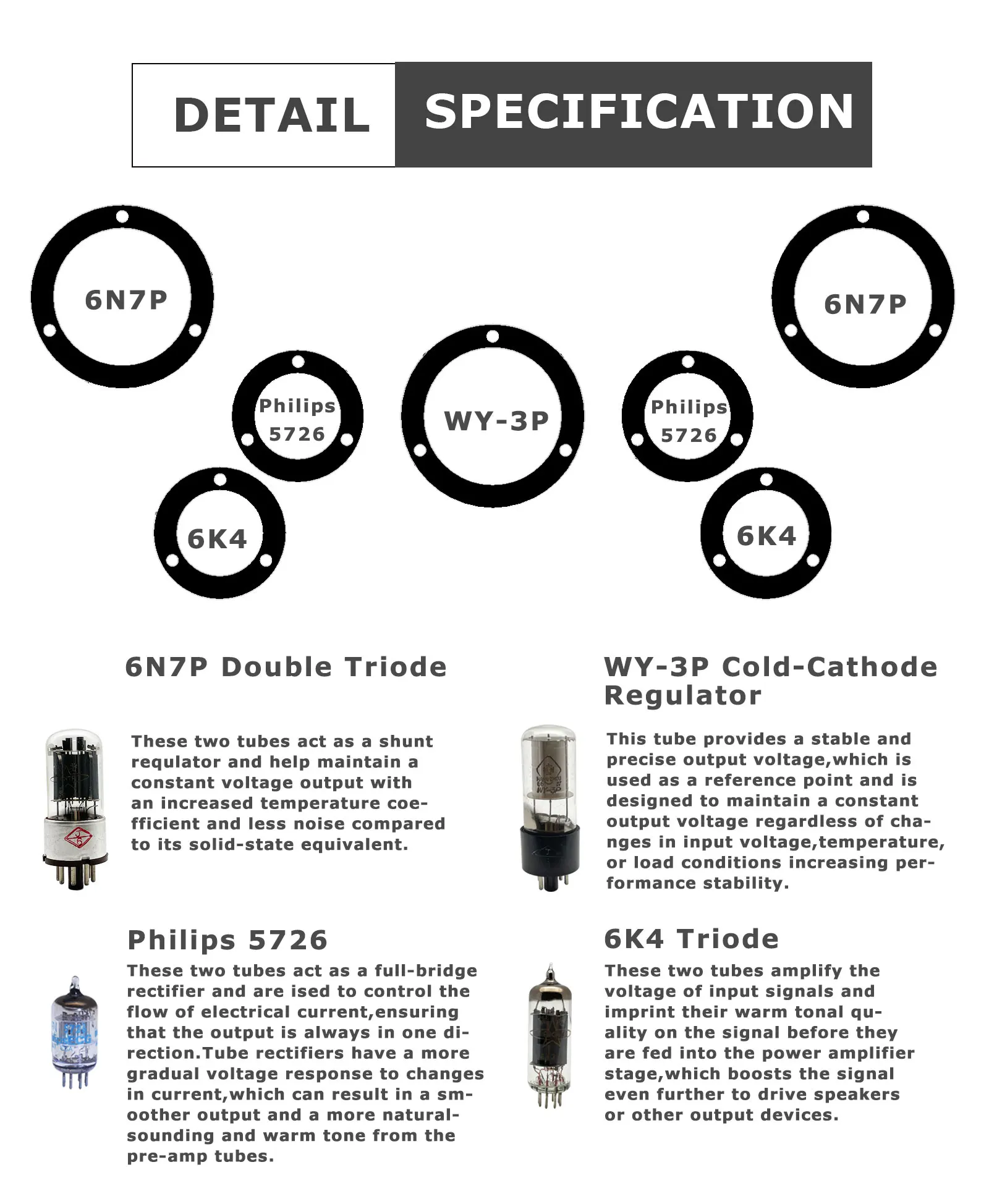

Preamplifier Tubes: 2 × 6K4 + 2 × 5726 + 2 × 6N7P

RMS Power Output: 100 W × 2 @ 4 Ω, 80 W × 2 @ 8 Ω

Signal-to-Noise Ratio: 80 dB

Stabilivolt Tube: WY-3P

THD+N: < 1.5% @ Maximum Rated Output

Tone Controls (Bass/Treble): 6 dB/oct @ 200 Hz and 4,000 Hz

Total Gain: 29 dB

Transistors: Toshiba A1943 × 4, Toshiba C5200 × 4

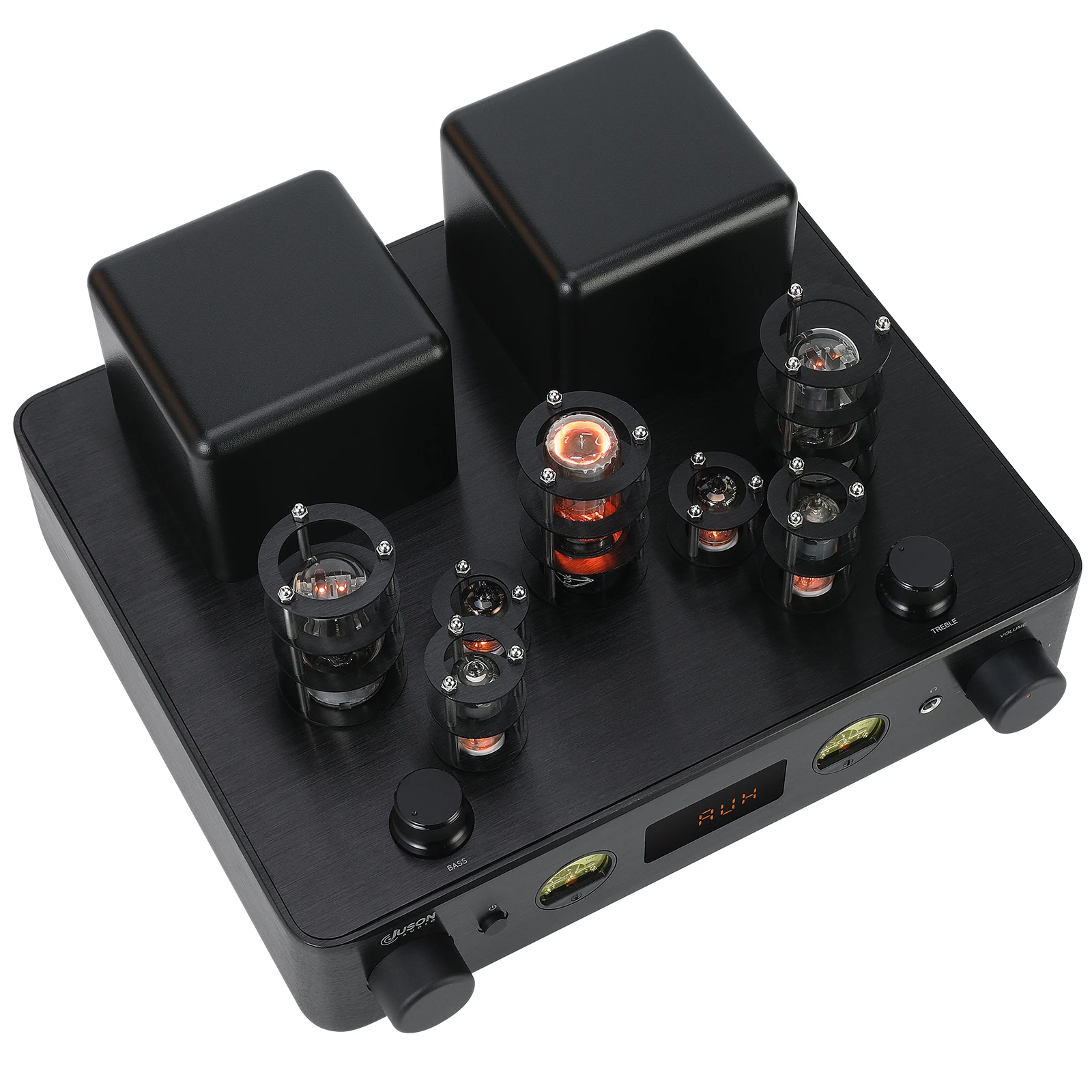

About JTA100-N (Updated Version)

Powerful Output:

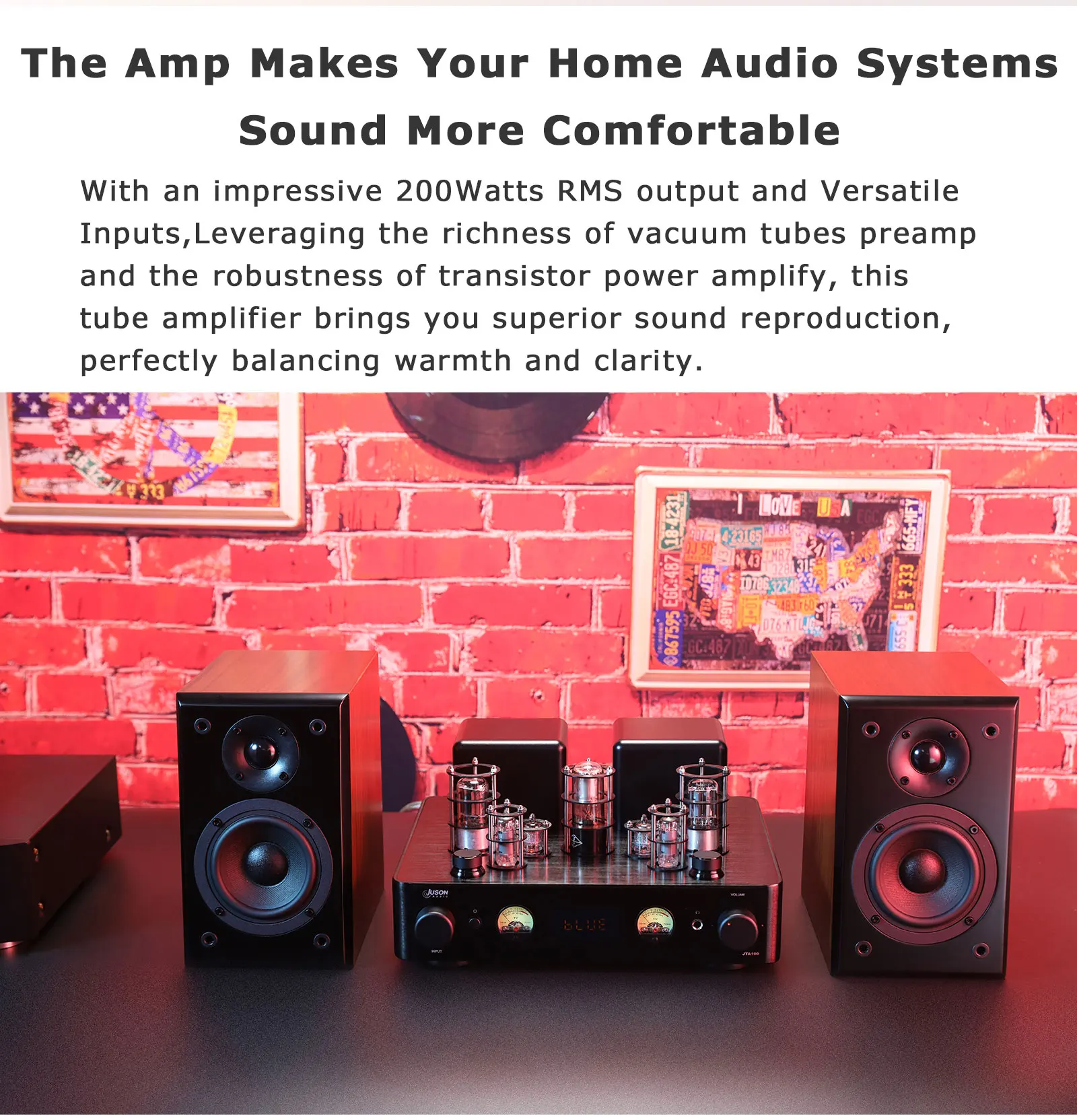

Delivers an impressive 200W RMS output for a rich, dynamic sound experience. Enjoy vibrant audio with the signature warmth of tube amplification.

Versatile Inputs & Outputs:

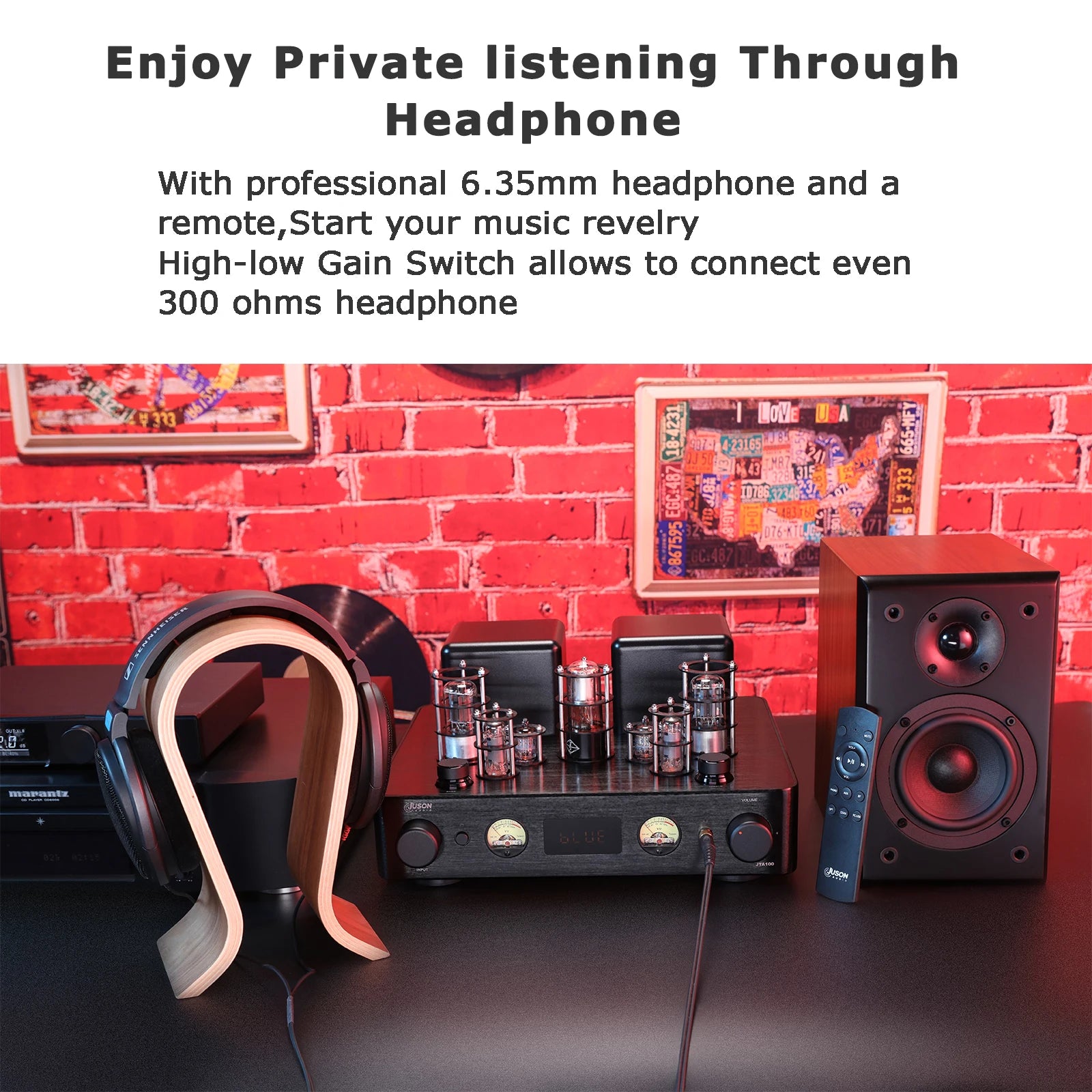

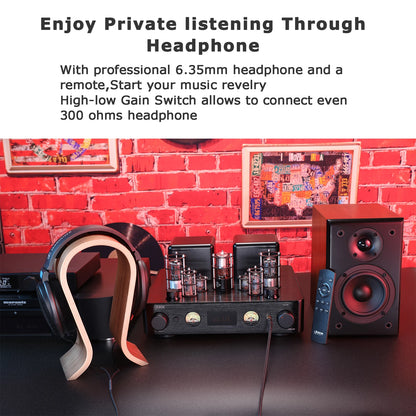

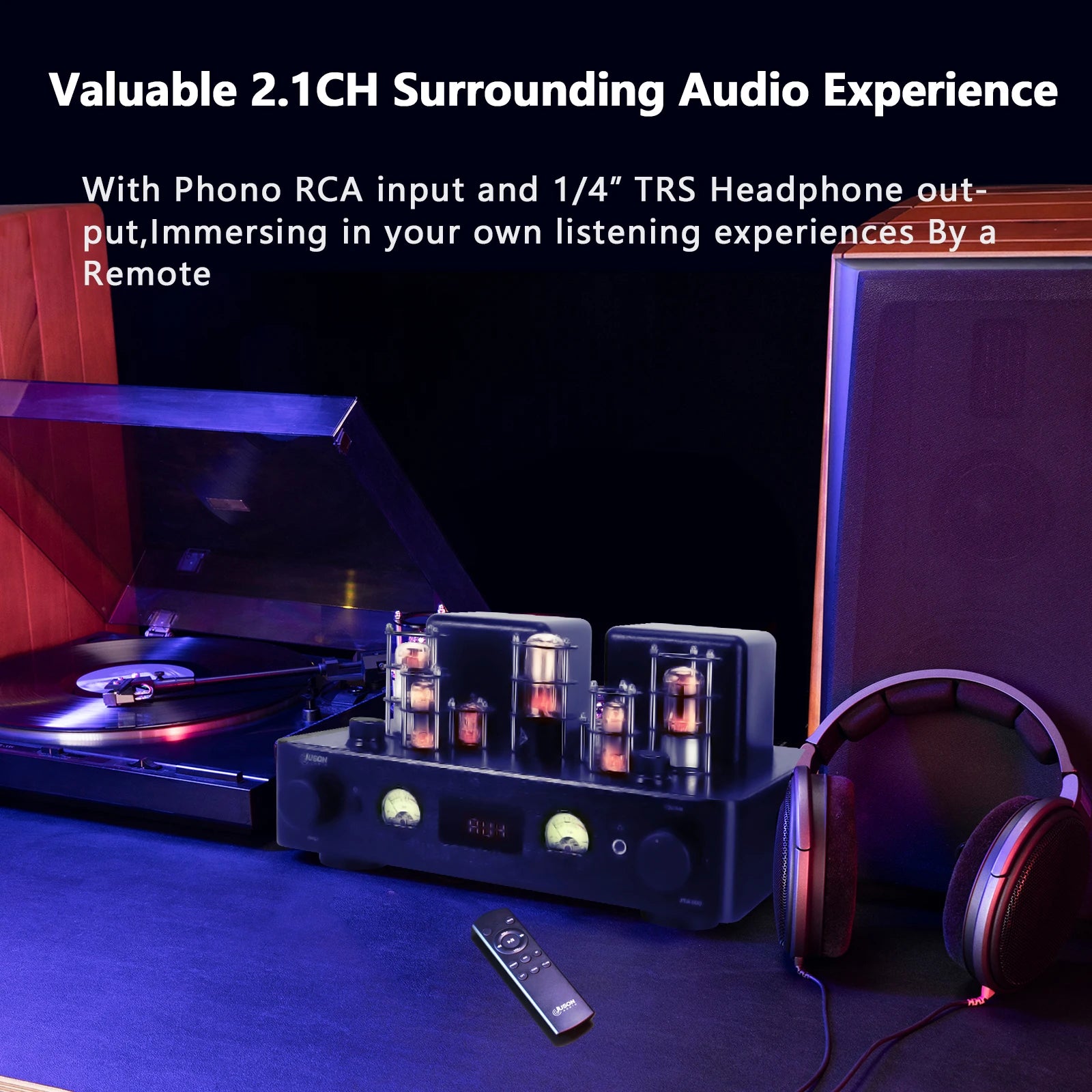

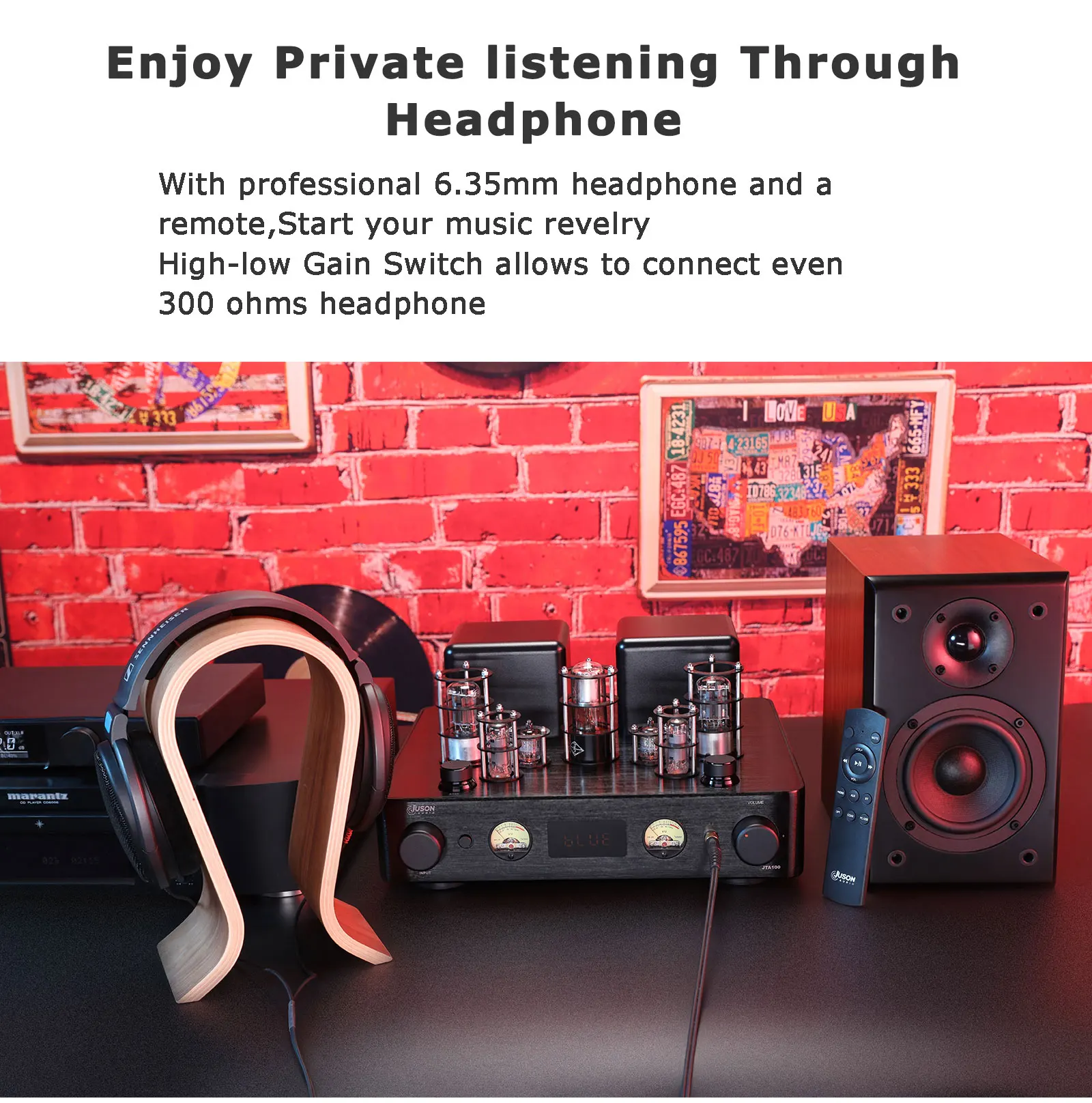

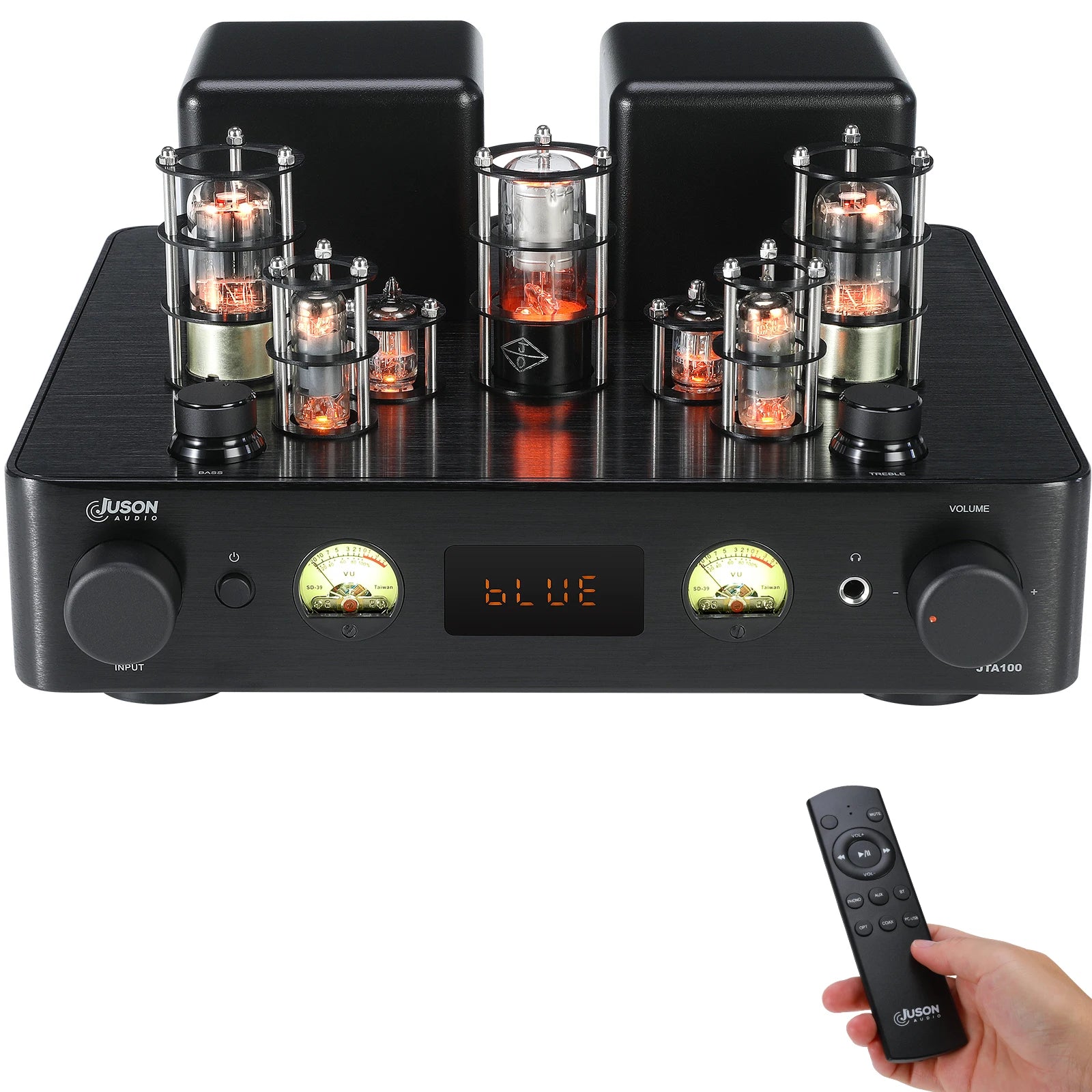

Supports AUX, COAX, PHONO, OPTICAL, and Bluetooth 5.0. Features headphone and subwoofer outputs, plus a remote control for convenience. The high-low headphone switch easily drives 16–600 Ω headphones with rich detail and clarity.

Hybrid Amplification:
Combines vacuum tube preamp warmth with transistor power amplification, achieving a perfect balance of smooth tone and precision.

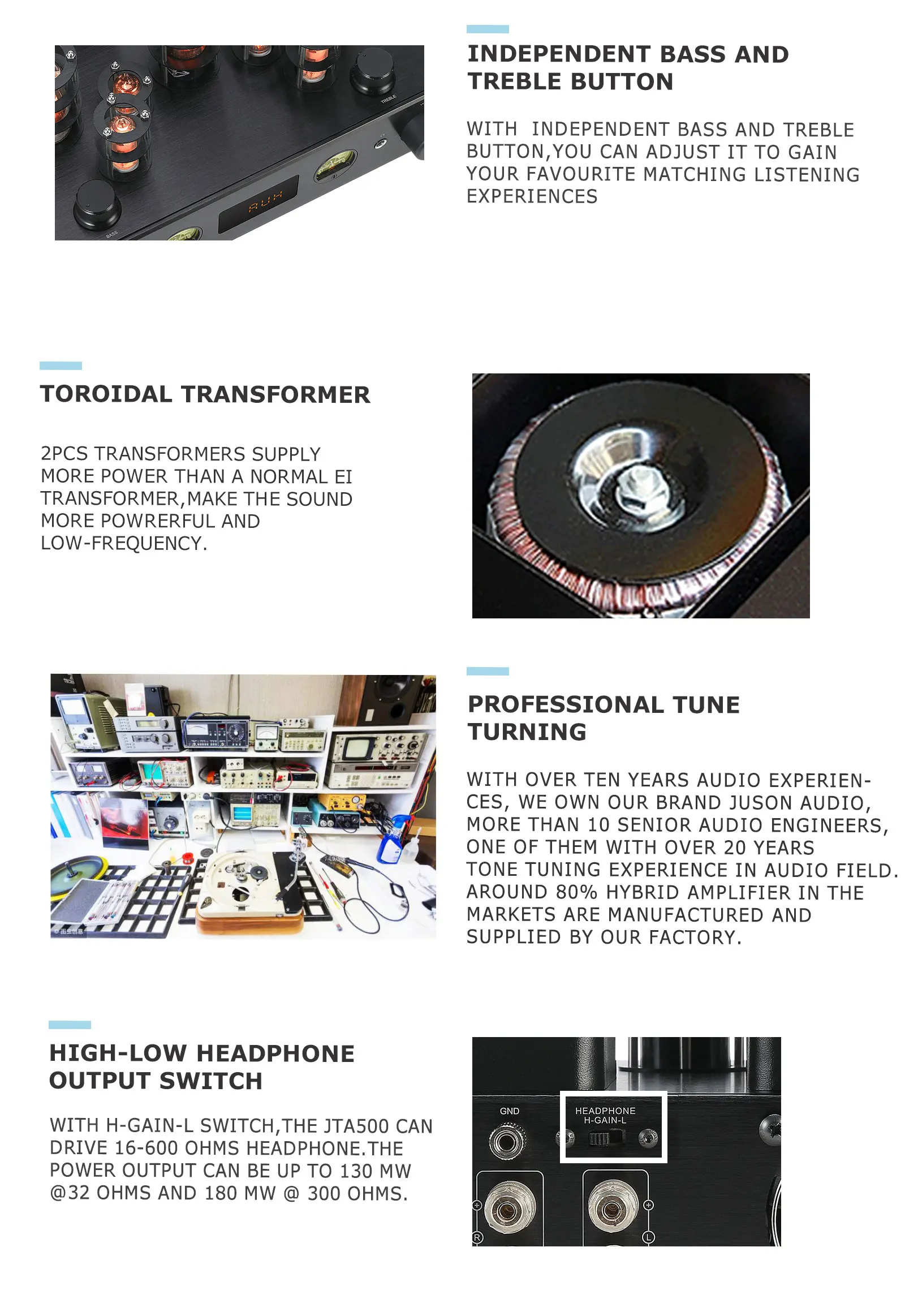

Independent Tone Controls:
Adjust treble and bass independently with dedicated knobs for a fully customized listening experience.

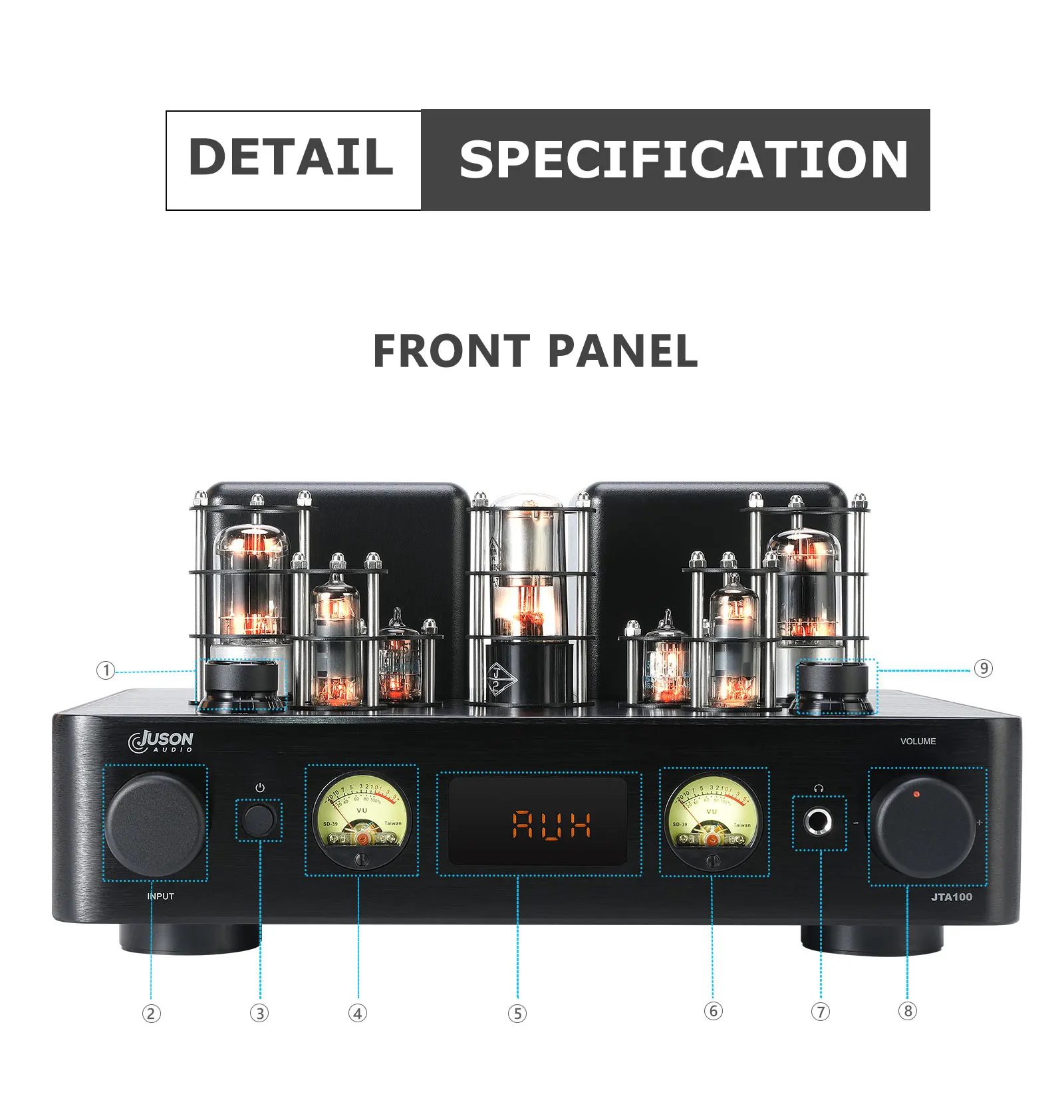

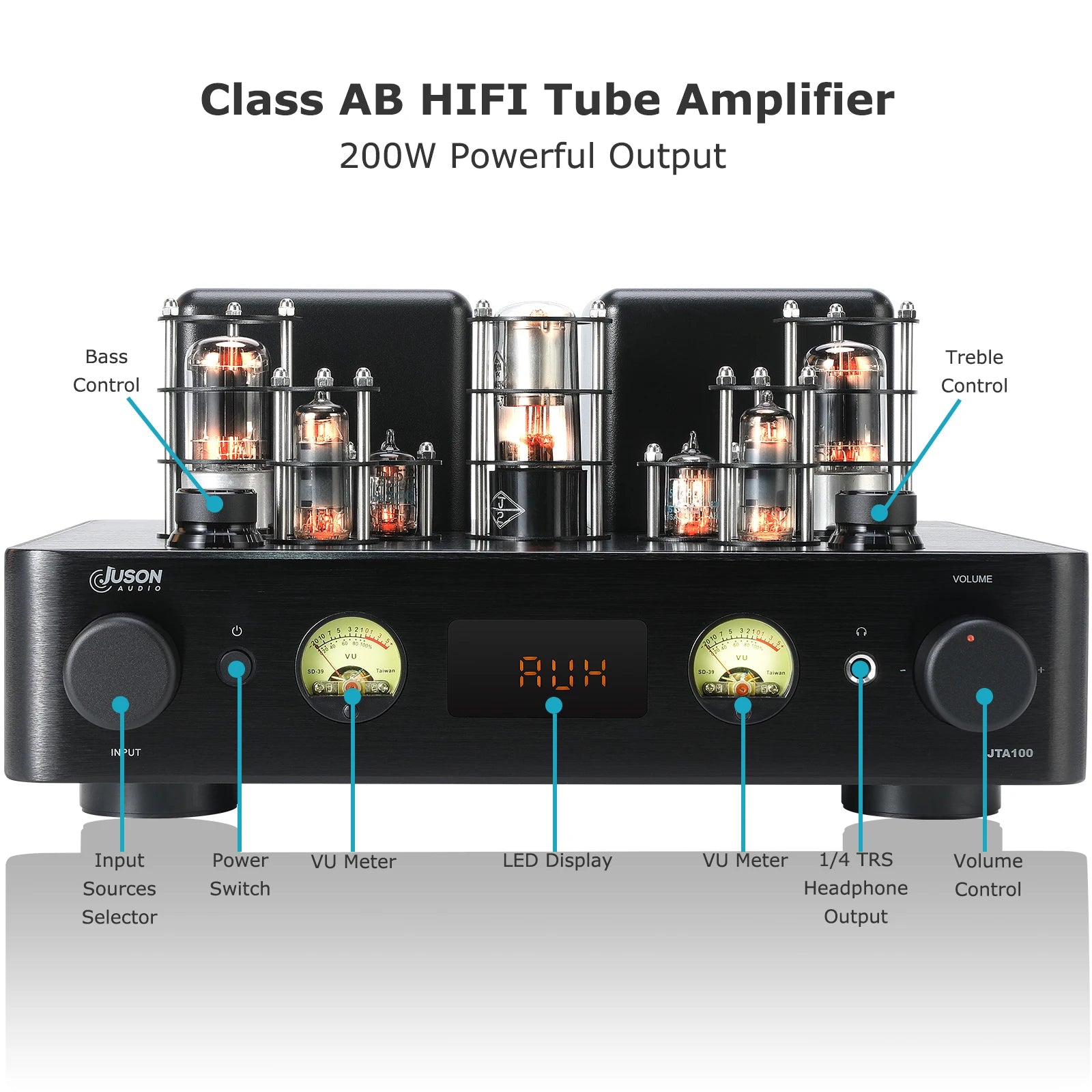

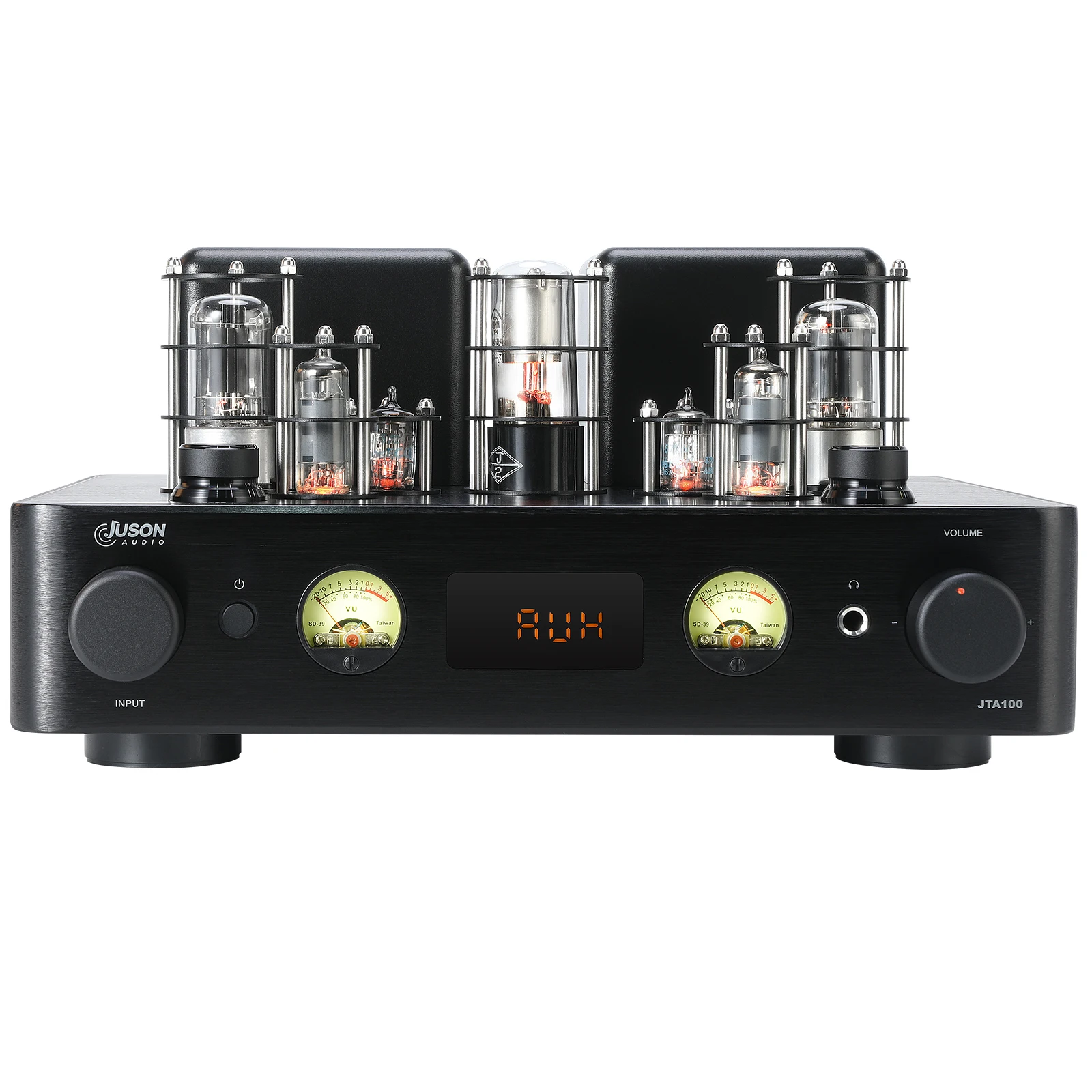

LED Display & VU Meter:
Elegant LED screen and classic analog VU meter provide visual feedback and a premium aesthetic

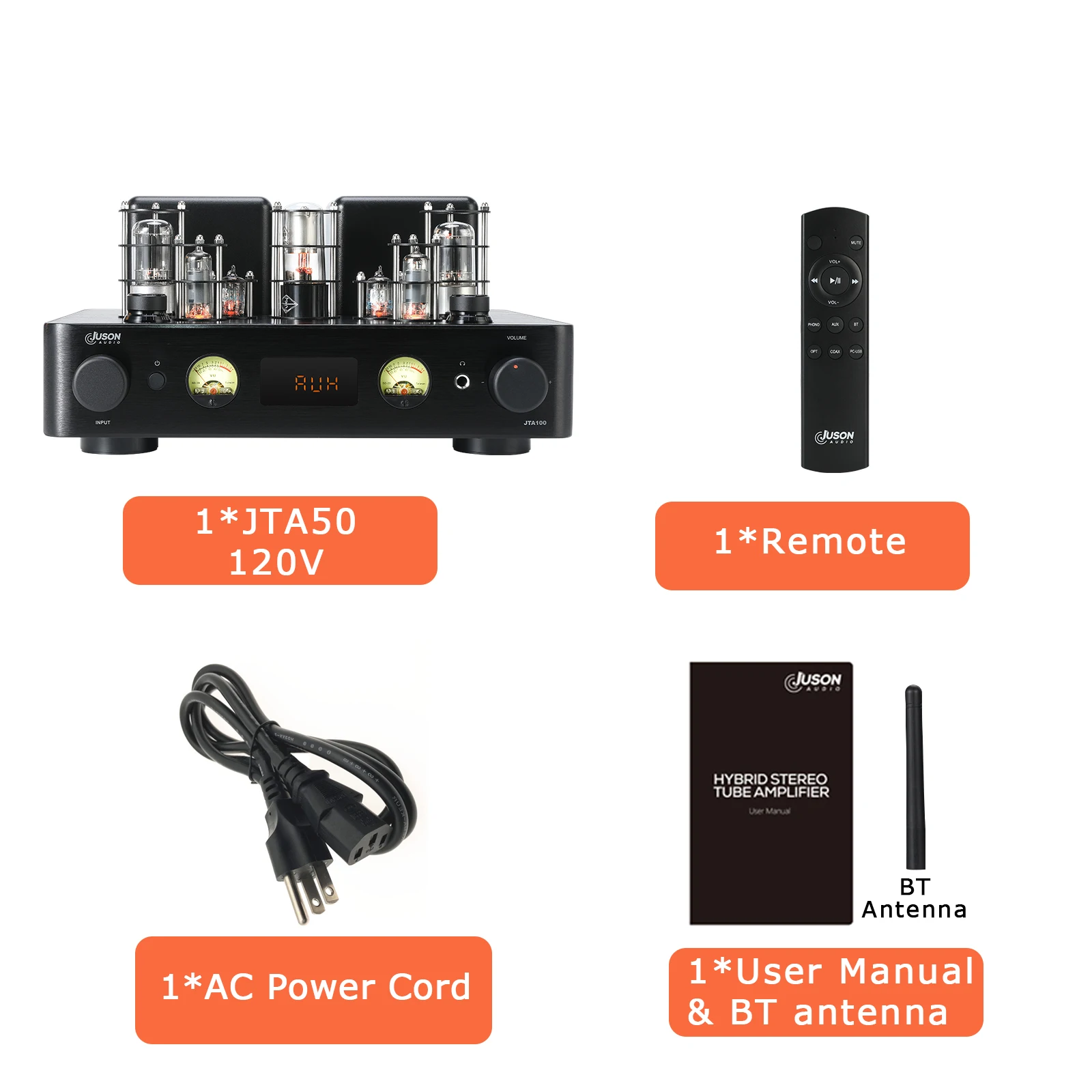

Package included:
